UI Charts and Variables

What Are Variables?

Variables are the foundation of interactive experiences in Spline. They are values that can change or be modified. You can think of variables as assets that can be assigned to multiple objects. However, the critical difference is that variables provide finer control. A variable can be a number, text, or Boolean value (true or false). You can combine variables with events to trigger actions and employ conditional logic to create actions driven by mathematical expressions.

Variable Types

Variables offer different types of variables to help creators manage and animate objects. These variables have specific uses and can make your projects more interactive and dynamic. Let's look at the three main variable types Spline provides:

• Number: Numbers are used for handling numerical data in your projects. You can use them to control object properties such as position, rotation, scale, and opacity. Numbers can be whole (e.g., 9) or include decimals (e.g., 67.123).
• String: String variables are for working with text. You can use them to create labels, display messages, or update text in your projects dynamically. For example, you can use string variables to show changing text on objects.
• Boolean: Booleans have two states: true and false. They are great for adding interactivity to your 3D content. You can use them to trigger actions or change an element's behaviour in response to user input.

Dynamic Variables

Dynamic variables like time, counter, and random are constantly changing values. These can be utilized to create time-based animations and other dynamic effects in your projects.

• Time: Use time-based variables to create dynamic animations and transitions. There are three types:
• Clock: Updates time based on local time or a specific time zone.
• Timer: Counts down from a predefined time.
• Stopwatch: Counts up from a predefined time.
• Counter: The Counter variable starts counting in seconds at a defined interval. This is useful for iterating through dynamic sequences or loops, such as animation driving.
• Random: Random variables generate random values within a specified range. These are great for introducing randomness and unpredictability into your project, like creating mini-game logic or procedural visuals.

Demo

• https://my.spline.design/Y09jcYI1omqjh-snfLj0-UG9/
• https://my.spline.design/untitled-1433bed60675da2ee86b6659fa9d9914/
• https://my.spline.design/RP-UbOIntIzlVLXI17sX7YWQ/

Open the Project

For this section, you'll need three files: '12.UI Charts and Variables2,' '12.UI.Charts and Variables,' and 'Variable Time,' all available in our Spline Courses library. When you open the project, you'll see that the 3D design is already done, and the camera is set up for you, so no adjustments are needed. We'll focus on working with variables.

Progress Bar

We’re going to start with the progress bar from the “ 12.UI Charts and Variables. ” As mentioned, the design is already done, the way we created it is similar to what you did at the beginning of the course, like the wifi icon and the weather icon.

Create Variables

Creating a new variable in Spline is easy. Go to the Variable Manager by clicking the variable section at the bottom of your workspace. There, you'll see default options, and you can add a new variable by clicking the plus icon. You can make different variables like numbers, Booleans, and strings, each with a name and an initial value.

• Open the variable table from the right sidebar when no objects are selected.- Select the Number variable type and double-click the variable name to rename it by "ShowNumber." Change the number to a specific value of 0.
• Add a new variable by clicking the (+) icon and choosing the Number variable type. Change the name to "Angle" and the value to "45".
• Add a new variable, select the String variable type, and double-click the variable name to rename it by "percentage." Change the number to a specific value of 12%.
• Create a new variable, select 'Counter' as the type, and name it 'Progress' with an initial value of 0.

Counter Variable

The counter starts counting from zero and increases at a specified time interval in seconds. This is useful for tasks such as repeating actions or animations at regular intervals, like driving an animation with the counter.

How to Use Variables

We're going to assign a Variable to an Object. You can select an object, hover over a property, and notice a variable icon in the corner. Click on the icon to open the variable selector, where you can choose the variable you want to assign to that property. You can also change variable values from the Variables Manager, and the updates will reflect in real time. Moreover, variables can control an object's properties via events and actions.

• Select the text, hover over the 'text property,' click on the plus icon in the upper right corner, and select the variable to assign, 'Percentage.' The chosen variable now controls your object.
• Select the progress layer, hover over the Angle option in the 'shape property,' click on the plus icon in the upper right corner, and select the Angle variable.

Add Variable Change Events

After assigning a variable to the progress, we'll add the variable change events. A 'Variable Change Event' is a unique type of event that occurs when the value of a variable undergoes a modification or alteration. It's beneficial when working with dynamic variables, such as counters, as it allows you to create dynamic animations for an object's properties. By using Variable Change Events, you can trigger actions or animations in response to changes in variable values. This feature is convenient for creating interactive and animated content, enabling objects to respond in real time to adjustments in the associated variable, resulting in engaging and dynamic experiences.

• Select the progress layer, add events, and select Variable Change, then the Progress variable.

Set Variable Action

Then, we will choose the " Set Variable " Action, which lets you change the value of a variable based on an expression. This expression can use other variables or variable helpers. It's an action that helps you alter variables and object features. You can use another variable or create a custom calculation to do this.

• Add Set Variable action, select the Angle variable to Progress. Add the formule “*360/100”.
• Add new action, choose Pourcentage to ShowNumber. Add this formule +”%”
• Add new set variable action, select ShowNumber to Round(Progress).

UI Chart

Open our second exercise, a 3D chart called Charts and Variables - Exercise 2. As mentioned, the design is already done, and the camera is already configured for you, so we'll focus on the variable. So I'm only going to show you how to do the first column, then it's the same for the other three columns. This will serve as a homework assignment to help you practice. To begin, let's create the variables. Open the variable table from the right sidebar.

• Select the Number variable type, double-click the variable name, and rename it to "Column 1." Set the value to 100.
• Select the Number variable type, double-click the variable name, and rename it "Column 1 in %." Set the value to 0.
• Select the String variable type, double-click the variable name, and rename it to "Column Text 1." Set the value to 20%.

Assign a Variable to an Object

Now that we've finished creating our variables, it's time to assign them to our objects as text and instructions.

• Select the text object, hover over the 'text property,' click on the plus icon in the upper right corner, and choose the Column Text 1 variable.
• Next, select the shape column, hover over the 'Extrusion,' click on the plus icon in the upper right corner, and select the Column 1 variable.

Plus Button

We're going to configure the animation for our plus button. I want to enable interaction by clicking on the plus button, causing both the column and the number to increase. We'll be adding mouse-down events and conditional actions.

• Select the But Plus layer and Add Mouse Down events.
• For the mode, set to Repeat Each Time.
• The Trigger is On This Object.

Add

Conditional Logic allows you to activate actions under certain circumstances, like distance, value comparisons, or state changes. This enables you to create more engaging experiences, such as having a door open when a character approaches, all controlled through Game Controls. In the settings, you'll find the 'If' condition and the 'Else.' You can also include actions. The 'If' conditions act like rules, determining what happens when specific conditions are met. They help you recognize when an object changes to a particular state and then allow you to make something happen in response, either in the same object or a different one.

• Add conditional "Column 1" and the formula is "<500".
• Add Set Variable action, select column 1. variable, to column 1, the formula is +50.

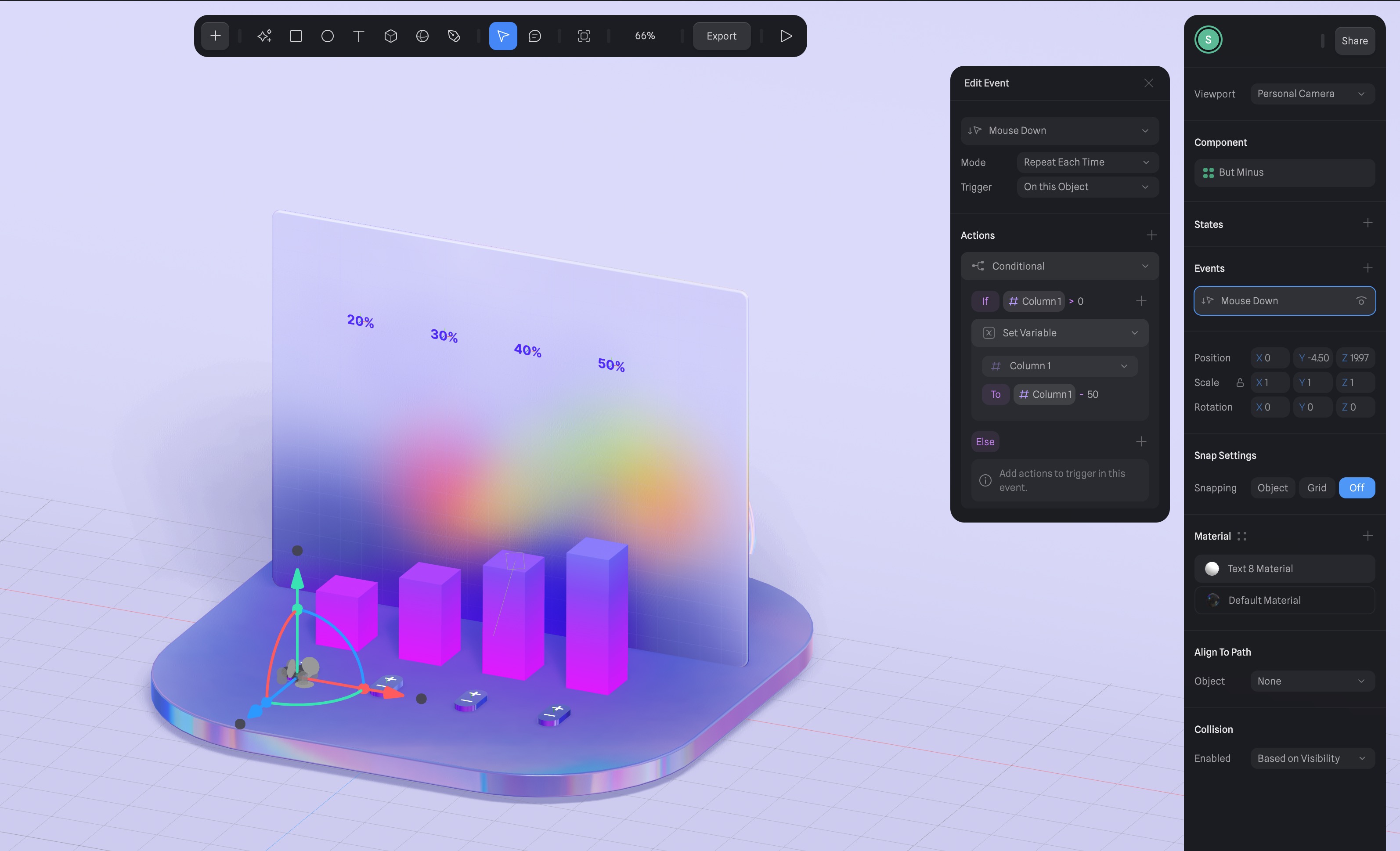

Minus Button

We'll repeat the same step we did with the plus button, but the formulas will be different.

• Add conditional “Column 1,” and the formula is “>0”.
• Add Set Variable action, select column 1. variable, to column 1, the formula is -50.

Configuring the Text

This step is similar to our first exercise. For further explanation, you can scroll to the top of the page.

• Select the text and add a Variable Change event by choosing the Column 1 variable.
• Add the "Set Variable" action. Select the Column 1 variable and set it to the Column 1 in % variable. The formula is +"%".
• Introduce new actions by setting the variable "Column Text 1" to "Column 1 in %" with a formula of "/5".

Third exercise - Alarm

Now open the Variable Time project. We've reached our final exercise. This part is very quick and easy. We'll use the 'Time' dynamic variable for this part. In the earlier section, I explained dynamic variables. I've already covered 'Counter' and 'Random,' and now I'll focus on explaining 'Time.

• Open the variable table from the right sidebar when no objects are selected. Then. Select Time.

Time Variable

Time is a valuable tool for creating dynamic animations and smooth transitions. You can use it to incorporate a time element into your projects. It involves defining a string that you can apply as the content of a Text object. Time is categorized into three types: Clock, Timer, and Stopwatch, each with its property options, which we'll explore next.

• For the type, set to Clock, and for the format HH:mm:ss, choose 24h, and the time zone will be __None, __which is the local time.
• What's left to do is to assign the text to the variable time we've just created.

Time Property Options

Clock: With the "Clock" type, you can choose to update time based on either local time or a specific time zone.

• Property Options:

  • Format: Customize the appearance of time using formatting options like HH:mm:ss, mm:ss, or even display seconds with three decimal places.
  • 12/24h: Decide whether to use a 12-hour or 24-hour time format.
  • Time Zone: Display the local time zone or a specific time zone, ranging from None to UTC -12 to UTC+14.

Timer: The "Timer" type allows you to count down from a pre-defined time, such as from 30 seconds to 0 seconds.

• Property Options:

  • Format: Customize the appearance of the countdown time using formatting options.
  • Value: Set the initial time for the timer in hours (H), minutes (M), or seconds (S).
  • End Value: Choose whether the timer should end, and if so, specify the end time in hours, minutes, or seconds.
  • On End: Decide whether the timer should restart or stop when it reaches the end value.

Stopwatch: The "Stopwatch" type counts up from a pre-defined time, for example, from 0 seconds to 30 seconds.

• Property Options:

  • Format: Customize the appearance of the stopwatch time using formatting options.
  • Value: Set the starting time for the stopwatch in hours (H), minutes (M), or seconds (S).
  • End Value: Determine whether the stopwatch should end, and if so, specify the end time in hours, minutes, or seconds.
  • On End: Choose whether the stopwatch should restart or stop when it reaches the end value.

Spline Docs

I strongly recommend that you refer to the Spline Documentation for a better understanding of Variables. Additionally, explore the other sections you've learned. You'll find in the documentation the topics we've mentioned in this section.

• Variables
• Conditional Logic Event
• Set Variable Action

Conclusion

That's it! You've now learned how to use variables in Spline to create interactive and dynamic 3D content. Feel free to experiment and push the boundaries of your creativity with variables in Spline.
